Event conditions are the conditions that activate the alerts.
Event Conditions
AlphaX allows you to set up various alert conditions to monitor system events and trigger alerts based on predefined criteria. This guide explains how to configure these alert conditions.

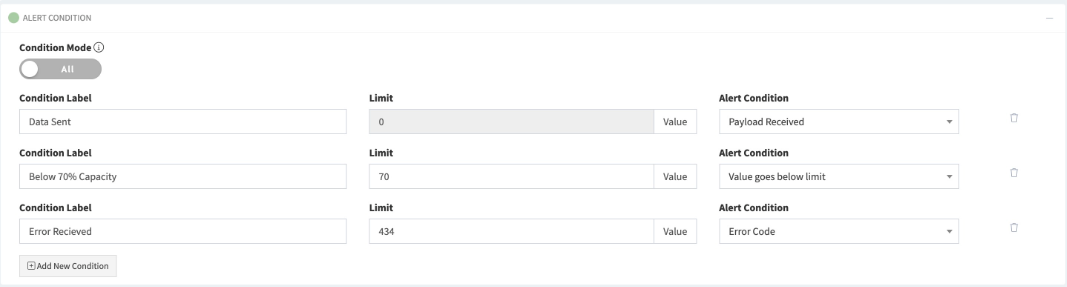

Alert Condition View
By following these guidelines, you can effectively monitor and manage system events in AlphaX, ensuring timely alerts and responses to critical situations.
Understanding Condition Modes
- First Mode
- This mode matches the first condition that is true from the top of the list.
- Once a condition is matched, it stops processing further conditions.
- Useful when you want the system to trigger an alert immediately upon meeting the first criterion.
- All Mode
- This mode evaluates all the conditions in the list.
- Useful when you need all specified conditions to be evaluated and potentially trigger multiple alerts.
Types of Conditions
AlphaX supports three types of conditions:
- Value-Based Conditions
- Options: Above, Equal, Below
- Use this type to trigger alerts based on numerical values.
- Example: Trigger an alert if a temperature sensor reads below 70 degrees.
- Status-Based Conditions
- Options: Payload Received, Device Offline, Error Code
- Use this type to monitor specific status events of devices or systems.
- Example: Trigger an alert when a device goes offline or an error code is received.
- AI-Based Conditions
- Option: Anomaly Detected
- Use this type to leverage AI to detect unusual patterns or behaviors.
- Example: Trigger an alert when the system detects an anomaly in data patterns.
Configuring Alert Conditions
- Adding a Condition
- Click the + Add New Condition button.
- Enter a Condition Label to describe the condition.
- Set the Limit value if applicable (e.g., 70 for Below 70% Capacity).
- Choose an Alert Condition from the dropdown (e.g., Payload Received, Error Code).
- Deleting a Condition
- Click the trash can icon to the right of the condition you wish to delete.
Example Alert Setups
Condition 1: Data Sent
Condition Label: Data Sent
Limit: 0
Alert Condition: Payload Received
Condition 2: Below 70% Capacity
Condition Label: Below 70% Capacity
Limit: 70
Alert Condition: Value goes below limit
Condition 3: Error Received
Condition Label: Error Received
Limit: 434
Alert Condition: Error Code
Tips for Effective Alert Management
- Prioritise Conditions: When using First Mode, arrange conditions by priority to ensure the most critical alerts are processed first.
- Monitor Critical Systems: Use status-based conditions to keep an eye on vital system statuses like device connectivity and error codes.
- Leverage AI: Incorporate AI-based conditions to detect and respond to unusual patterns that might not be immediately obvious through value-based conditions.
